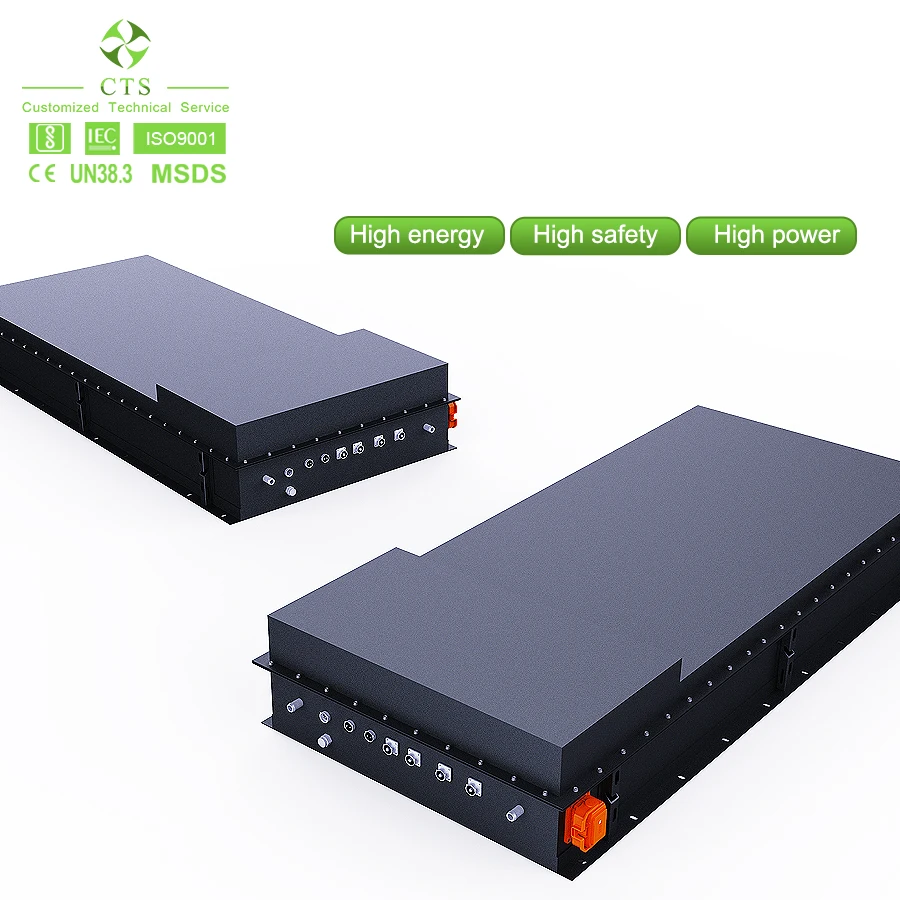

CTS 300V 30KWH 40KWH Hybrid Electric Bus LFP 336V 100AH Lithium Iron Phosphate Batteries Pack For EV

Product Categories

Hunan CTS Technology Co,.ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

CTS 300V 30KWH 40KWH Hybrid Electric Bus LFP 336V 100AH Lithium Iron Phosphate Batteries Pack For EV

Brand Name : CTS

Model Number : CTS345210

Certification : CE/IEC/UL/MSDS/UN38.3/Rohs/R100

Place of Origin : China

MOQ : 1

Price : 3800-7000

Payment Terms : L/C, T/T

Supply Ability : 10000PCS

Delivery Time : 40-50 working days

Packaging Details : foam and wooden box by sea, UN box by air

Voltage : 200V 300V 400V

Charging : 0.5C/1C

Application : Electric vehicles, Boat

Cell Type : Lifepo4

Protection : Smart BMS+relay

Size : Flexiable

Customized : Acceptable

Certificate : CE/IEC/UL/MSDS/UN38.3/Rohs/R100

PDU : Integrate

Operating Temperature : -20°C to 50°C

Contact Now

CTS 300V 30KWH 40KWH hybrid electric bus LFP 336V 100AH lithium iron phosphate batteries pack for EV

One Stop Battery Solution

CTS can provide one stop accessories

Free testing of accessories before shipment

Solve the configuration problem of different suppliers

Battery, OBC, DCDC, MCU, PDU, Charging gun

Support 3.3kw and 6.6kw

Wide AC range 90~240V, single phase

Wide DC range 35V-680V

IP 65

Liquid and air cooling

12V/ 1KW~1.5KW 24V/ 1.5KW~3KW

IP65

Liquid and air cooling

20~60KW high power

Movable charging station

220V single phase/ 380V 3 phase

AC 220V and 110V

16A and 32A

Support customization

Different control channels

Intergrated main BMS

Relays built in and MSD available

Dimension & Details

Parameters of 345v 210Ah Lifepo4 battery pack
No.	Items	Technical requirement	Note
1	Battery Type	Lifepo4	108S2P
2	Capacity(Ah)	210	@25℃
3	Volatge	345
4	Power(kWh)	72.45
5	Weight(kg)	603
6	Working Voltage range(DC V)	270-394.2
7	Continuous discharge current(A)	200	@EOL,@25℃
8	Peak discharge current(A)	600	For 30 seconds
9	Standard charge current(A)	100
10	Max charge current(A)	200
11	Dimension (L/W/H, mm)	1835880300mm
12	Model number	R-NT-345210-2

Core technologies

>>> Lightweight and scalability <<<

CTS systematically optimizes the cell design and electrical component selection. We select the lightest steel/aluminum alloy and high-strength plastics,battery box and pack structure to reduce the volume and weight of the battery system combined with CAE structural simulation analysis to ensure structural strength and improve energy density. CTS uses standardized cells and BMS to build a 12V 24V 48V 72V battery modules. It can need different customer’s requirements by its excellent scalability to shorten the pack design cycle.

>>> BMS and Active Balance <<<

CTS has an experienced BMS development team. Our BMS uses passive balance by default. Active balance can be selected which can modify BMS parameters on site according to the actual application of customers, such as CAN / RS485 communication protocol, threshold parameters such as over / under voltage protection, high current protection, over / under temperature protection.

>>> Thermal Management and Simulation Design <<<

CTS has the capabilities of CFD simulation (Computational Fluid Dynamics) and CAE simulation (Computer Aided Engineering), and can do thermal management simulation design and structural mechanics simulation design for the pack system. Air cooling system, liquid heat and liquid cooling system, PI film heating, silica gel film heating are used in the thermal management design.

>>> Test and Verification <<<

CTS has its cooperated battery test laboratory. We will verify the battery DV / PV (design verification / production verification) stage in the laboratory to verify whether the design / production of the battery pack meets the design requirements. It includes temperature test, mechanical test, external environment simulation test, electrical safety test, battery performance test, abuse test and so on.

Related products

NMC 72V 200Ah Lithium battery
Battery Type	NMC
Capacity	200Ah @25℃
Voltage	72v
Weight	130.5kg
Working voltage	60v - 84v
Battery power: 14.4 kWh Client Country: Canada, in operation since 2015

Lifepo4 96V 400Ah Lithium battery
Battery Type	Lifepo4
Cpacity	400Ah @25℃
Voltage	96v
Weight	337kg
Working voltage	75-109.5
Battery power: 38.4 kWh Client Country: New Zealand, In operation since 2020

NMC 144V 100Ah lithium battery
Battery Type	NMC
Capacity	100Ah @25℃
Voltage	144v
Weight	130.5kg
Working Voltage	120v - 168v
Battery power: 14.4 kWh Client Country: Thalaind, In operation since 2020

Lifepo4 614v 100Ah lithium battery
Battery Type	Lifepo4
Capacity	100Ah @25℃
Voltage	614.4v
Weight	558kg
Working Voltage	480v - 700.8v
Battery power: 61.44 kWh Client Country: UK, In operation since 2019

Product Safety

Application field

System Stability, high and low temperature resistance, long life, high cost performance,

high safty, ultra-wide application range.

Company Profile

10+ years to sharpen a sword.
We do only one thing, professional customization.

20 + R&D team
150 front-line production employees
10 production lines
20,000 square meter plant
Capacity up to 500mwh

Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle batteries, large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries and so on.

We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-200ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.

We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.

We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join together to promote the development of renewable energy and friendly environment.

Product testing and shipping

1. Customized plywood case and foam packaging, safe for different shipment

2. 100% full testing before shipment to ensure quality

3. MSDS and UN38.3 certifications to ensure customs declaration and clearance during transportation

4. Customs on-site inspection to ensure the safety of the battery
