OEM electric vehicle battery pack 96V 100Ah 200Ah NMC battery pack for low-speed car

Name: OEM electric vehicle battery pack 96V 100Ah 200Ah NMC battery pack for lowspeed car
Brand: CTS customized battery pack
Price: 4500 USD

Quality OEM electric vehicle battery pack 96V 100Ah 200Ah NMC battery pack for low-speed car for sale

Brand Name : CTS customized battery pack

Model Number : 96v 100ah electric car battery

Certification : ce/msds/un38.3/iso9001

Place of Origin : Hunan,China

MOQ : 2

Price : $4500

Payment Terms : T/T

Supply Ability : 5000

Delivery Time : 45-55 working days

Packaging Details : carton

Battery type : LiFePo4/NMCBattery

Nominal Voltage : 72v/96v/108v....

Capacity : 100ah/120ah/160ah/200ah

Application : EV car

Cycle life : 3000times

Size : adjustable

Chargeable : Yes

Warranty : 2 years

Discharging Temperature : -40～55℃

Rechargeable : YES

Insulation Resistance : ≥50MΩ

Bms : Smart BMS

Contact Now

OEM electric vehicle battery pack 96V 100Ah 200Ah NMC battery pack for low-speed car

Product Description

Detailed product data 72v-100ah

No	Items	Technical requirement	Note
1	Battery type	NCM	20S
2	Capacity(Ah)	100	@25℃
3	Voltage	72	20
4	Power(kWh)	7.2
5	Weight(kg)	80
6	Working Voltage range(DC V)	60-84
7	Continuous discharge current(A)	100	@EOL,@25℃
8	Peak discharge current(A)	200	30s
9	Dimension(LWH)mm	960567267

One Stop Battery Solution

CTS can provide one stop accessories

Free testing of accessories before shipment

Solve the configuration problem of different suppliers

Support 3.3kw and 6.6kw

Wide AC range 90~240V, single phase

Wide DC range 35V-680V

IP 65

Liquid and air cooling

12V/ 1KW~1.5KW 24V/ 1.5KW~3KW

IP65

Liquid and air cooling

20~60KW high power

Movable charging station

220V single phase/ 380V 3 phase

AC 220V and 110V

16A and 32A

Support customization

Different control channels

Intergrated main BMS

Relays built in and MSD available

Core technologies

Lightweight and scalability

CTS systematically optimizes the cell design and electrical component selection. We select the lightest steel/aluminum alloy and high-strength plastics,battery box and pack structure to reduce the volume and weight of the battery system combined with CAE structural simulation analysis to ensure structural strength and improve energy density.

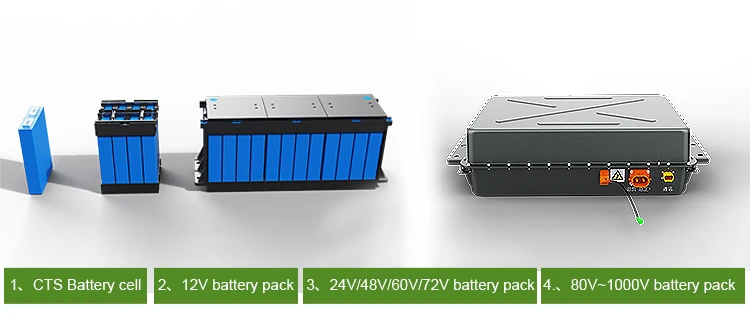

CTS uses standardized cells and BMS to build a 12V 24V 48V 72V battery modules. It can need different customer’s requirements by its excellent scalability to shorten the pack design cycle.

BMS and Active Balance

CTS has an experienced BMS development team. Our BMS uses passive balance by default. Active balance can be selected which can modify BMS parameters on site according to the actual application of customers, such as CAN / RS485 communication protocol, threshold parameters such as over / under voltage protection, high current protection, over / under temperature protection.

Thermal Management and Simulation Design

CTS has the capabilities of CFD simulation (Computational Fluid Dynamics) and CAE simulation (Computer Aided Engineering), and can do thermal management simulation design and structural mechanics simulation design for the pack system. Air cooling system, liquid heat and liquid cooling system, PI film heating, silica gel film heating are used in the thermal management design.

Test and Verification

CTS has its cooperated battery test laboratory. We will verify the battery DV / PV (design verification / production verification) stage in the laboratory to verify whether the design / production of the battery pack meets the design requirements. It includes temperature test, mechanical test, external environment simulation test, electrical safety test, battery performance test, abuse test and so on.

Product Safety

Related Products

Battery type	Lifepo4	20S
Capacity(Ah)	400	@25℃
Voltage	96	30
Power(kWh)	38.4
Weight(kg)	337
Working Voltage range(DC V)	75-109.5
Dimension(LWH)mm	1300500380

Battery type	NCM	20S
Capacity(Ah)	100	@25℃
Voltage	144	40
Power(kWh)	14.4
Weight(kg)	130.91
Working Voltage range(V)	120-168
Dimension(LWH)mm	Irregular

Battery type	NCM	20S
Capacity(Ah)	200	@25℃
Voltage	72	20
Power(kWh)	14.4
Weight(kg)	130.91
Working Voltage range	60-84
Dimension(LWH)mm	852x528x218

Battery type	Lifepo4	20S
Capacity(Ah)	100	@25℃
Voltage	614.4	192
Power(kWh)	61.44
Weight(kg)	558.55
Working Voltage range(V)	480-700.8
Dimension(LWH)mm	1780 x 720m x 345

Application Field

System stability, high and low temperature resistance, long life, high cost performance, high safety, ultra-wide application range

Company Profile

Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle batteries, large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries and so on.
We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-200ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.
We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.
We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join together to promote the development of renewable energy and friendly environment.
